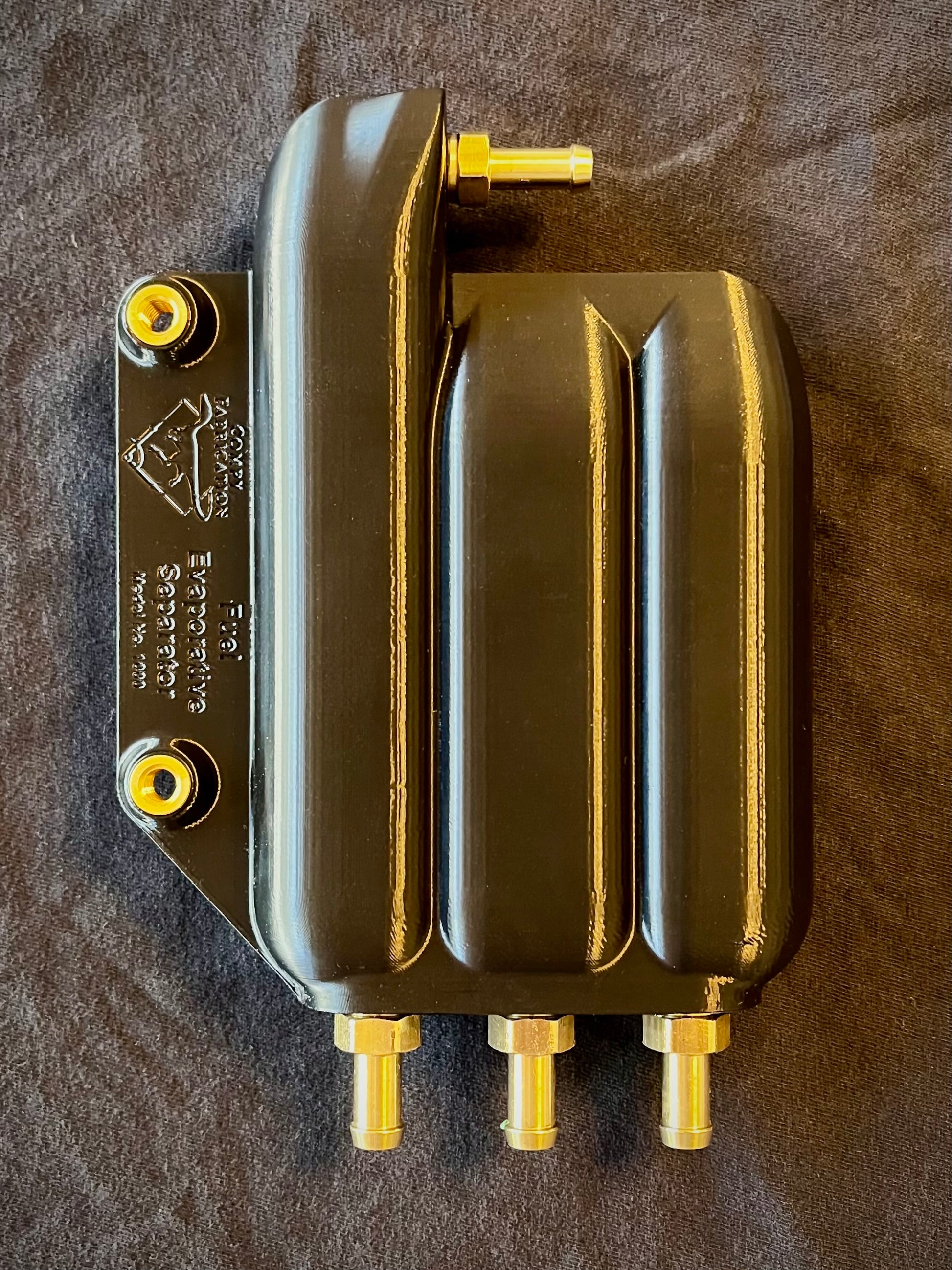

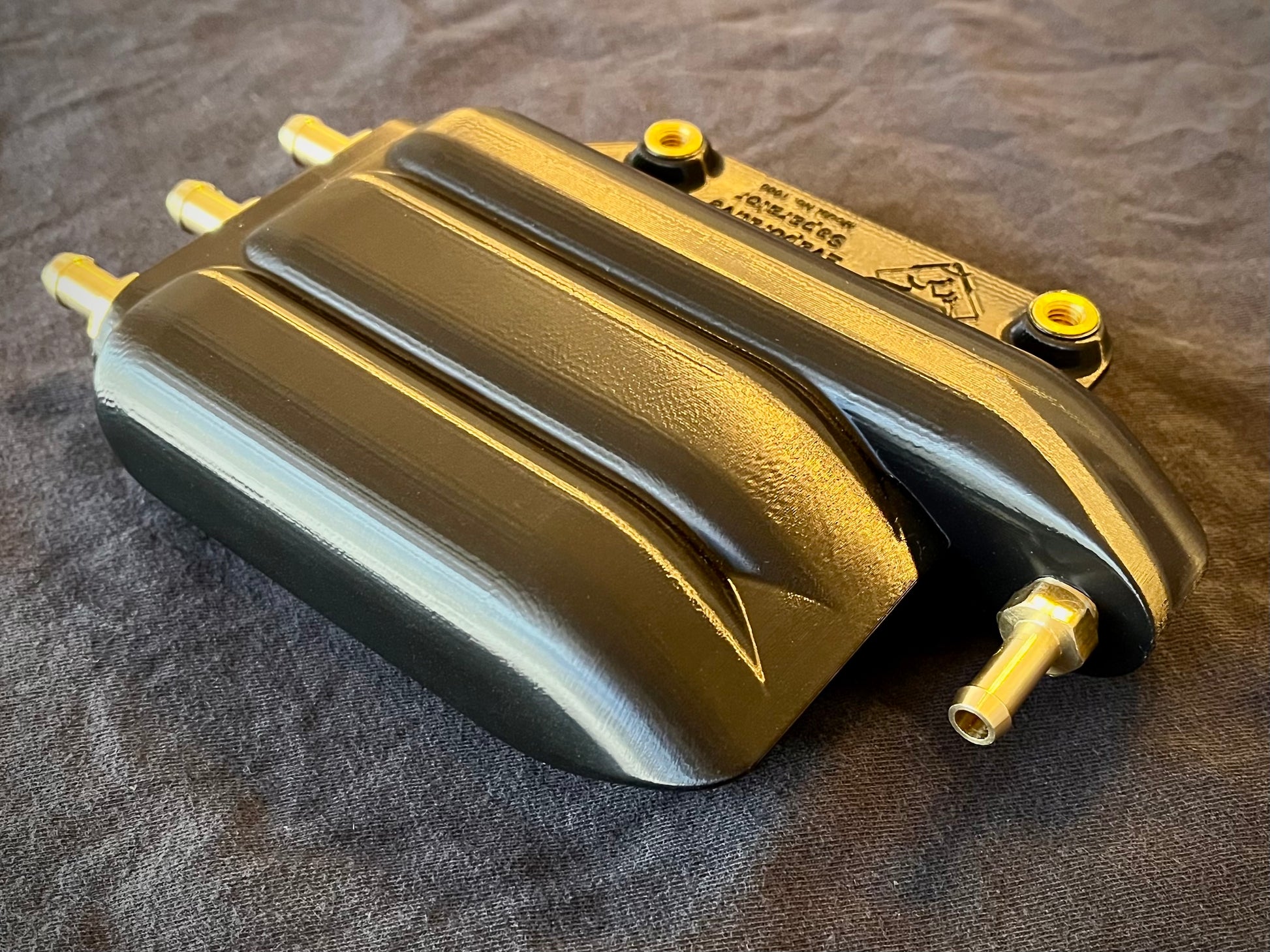

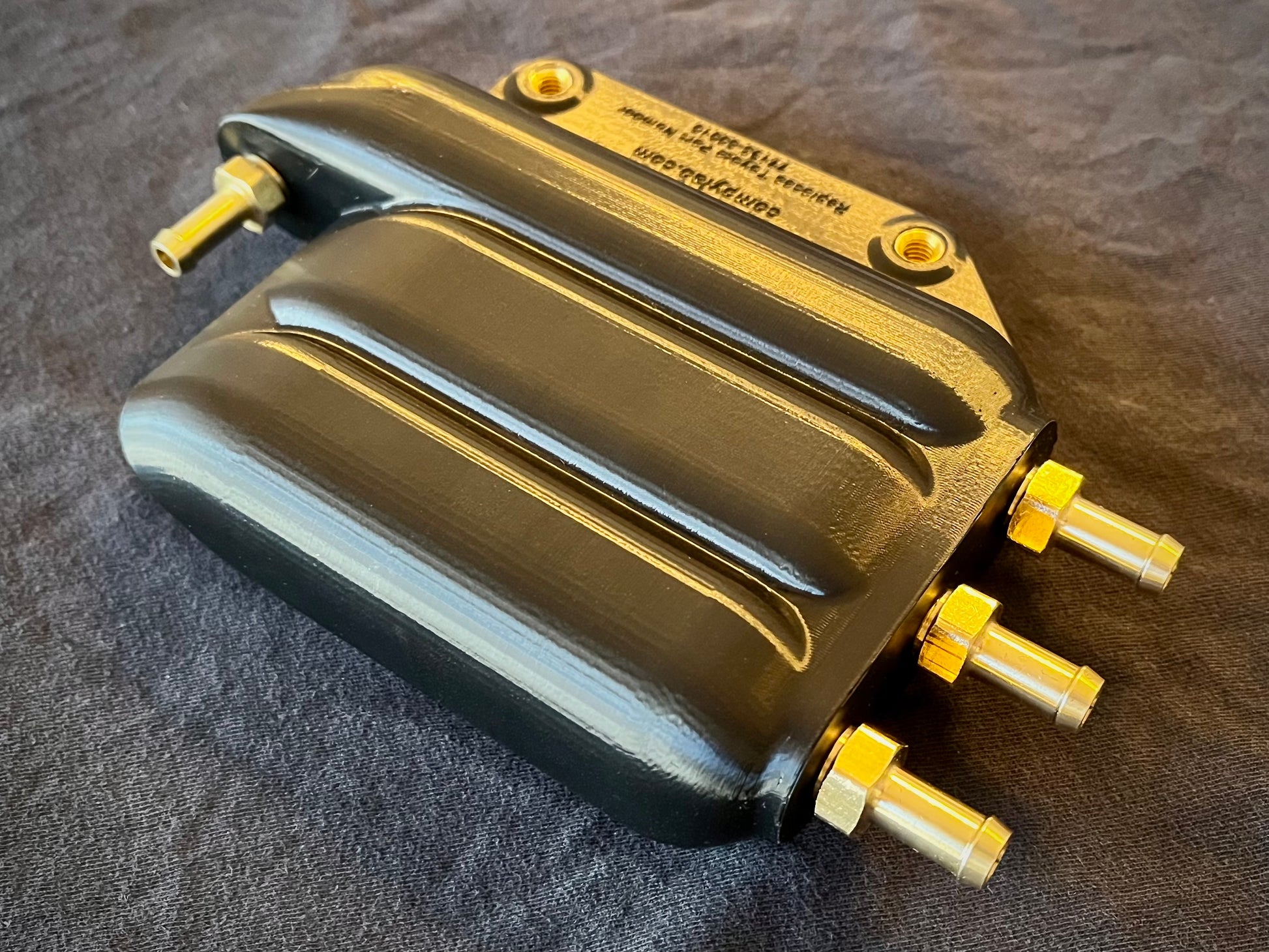

Smell gas in your cab? Your old vapor separator may be missing or damaged. We’ve engineered a replacement part that fixes all the weak points of the original design, and bolts right in with no modifications to your truck.
This evaporative separator works for 1972-1973 FJ40s with a narrow cover plate using two bolts.
Note: All our fuel separators use a smaller top-port for 6mm fuel hose (to be used with check valve 90917-10020, still available from Toyota). If you need a larger port for 8mm hose (which is correct for this year range), let us know on your order or contact us at sales@compyfab.com.
Part Details
Part: Fuel Evaporative Separator (aka EVAP Separator, Vapor Separator)
CompyFab Part Number: 1000
Toyota OEM Part Number: 77193-60010
Model: 40 Series Land Cruiser (FJ40)
Years: September 1972 - February 1973
Features
Made From 100% PA12 Nylon: Ideal for exposure to fuel / solvents, with flexibility to withstand vibrations.

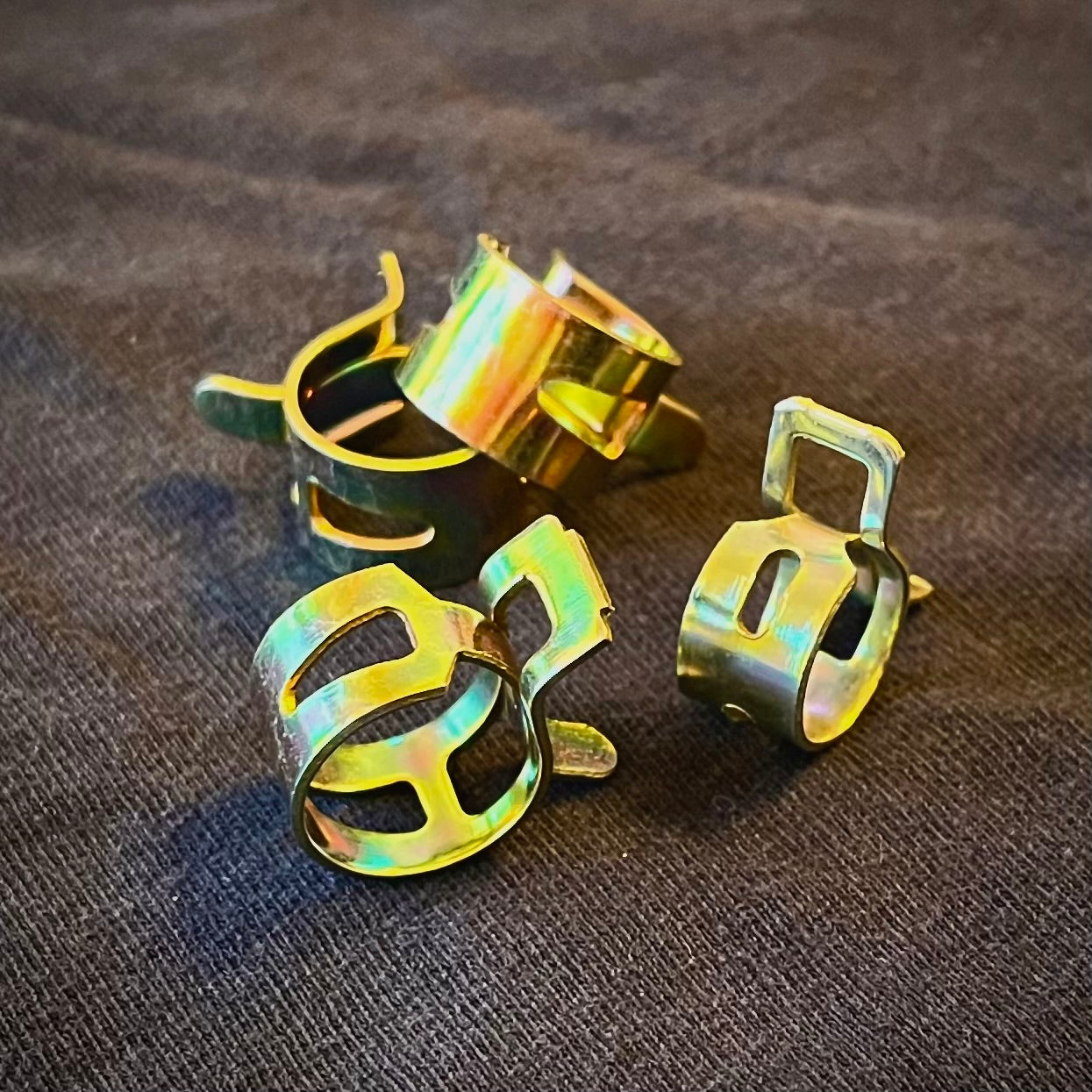

Brass Hose Adapters: Our vapor separators have reinforced ports, are drilled/tapped for 1/8″ NPT threads, and come with brass hose adapters pre-installed. Hose clamps are included for a complete install.
Pressure-Tested: Every fuel vapor separator is pressure and leak-tested to 15PSI before shipping. No more gas smell!

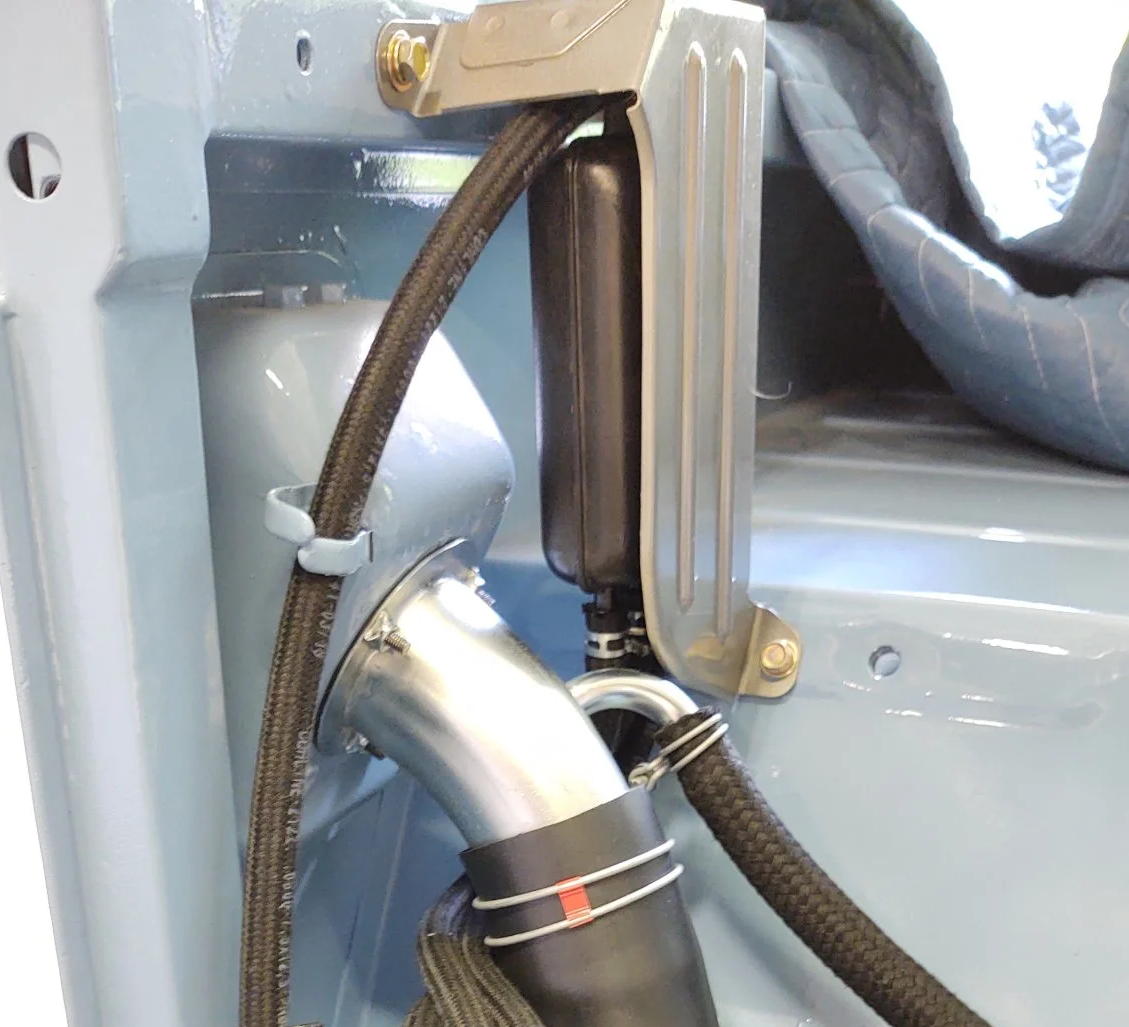

Cleaner Look: Once installed, you only see the edge of the fuel separator. We integrated mounting threads using brass heat-set inserts for a cleaner look (no rusty steel mounting clips).
Proper Fasteners: Our vapor separators come with Japanese Industrial Standards (JIS) class-4 M6 SEMS bolts (integrated lock washer + flat washer) to match the hardware in your rig.
